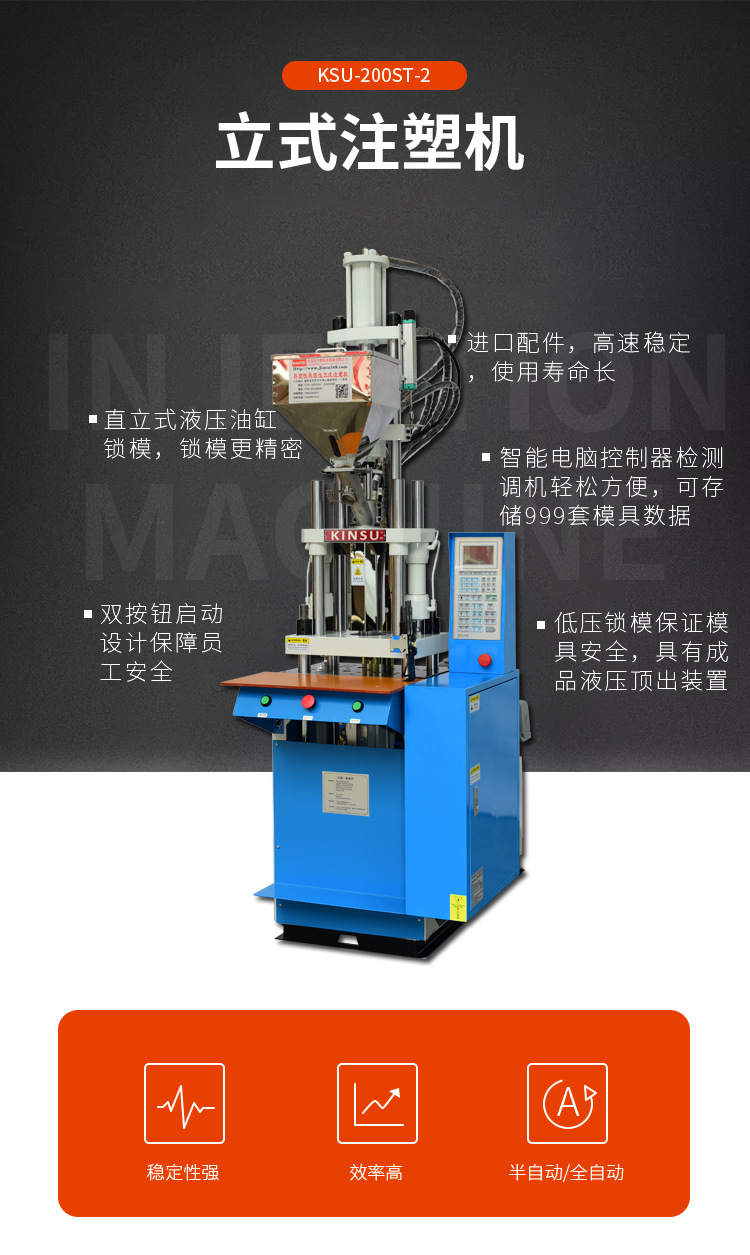

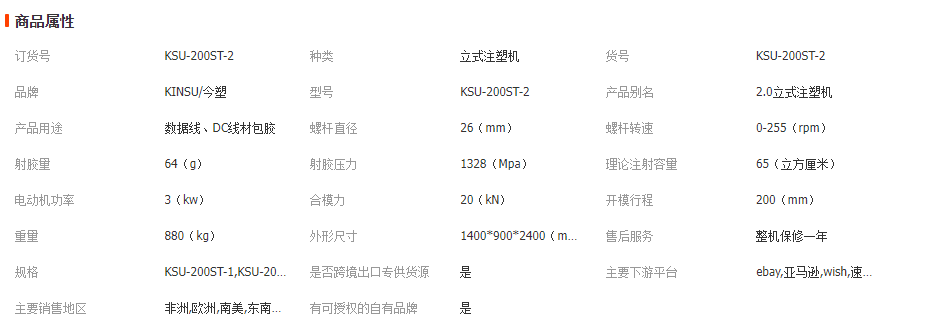

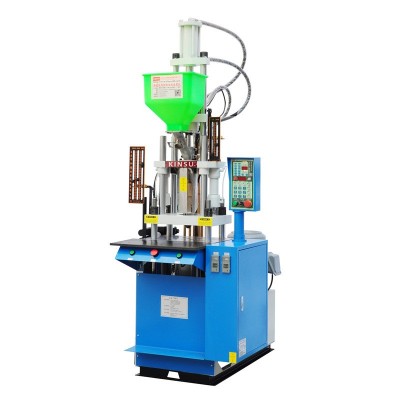

| 参数 Parameter | 型号 Model | UNIT | KSU-200ST-2 | |||
| 射出系统 Injection unit | 螺杆直径 Screw Diameter | mm | 22 | 26 | 28 | |
| 射出压力 Iniection Pressure | kg/cm2 | 1853 | 1328 | 1145 | ||
| 射出量 (PS)Max.Shot Weight(PS) | g | 45 | 64 | 74 | ||
| 螺杆行程 Injection Rate | mm | 120 | ||||
| 螺杆转数 Screw Speed Max. | Turn | 0-255 | ||||
| 射嘴行程 Nozzle Retraction | mm | 135 | ||||
| 温度控制段数 Number of temperature Control | Snt | 2/3 | ||||
| 锁模系统 Clamping unit | 锁模力 Clamping Force | Tons | 20/25 | |||
| 模板尺寸 Platen Size | mm | 490*320 | ||||
| 模柱间距 Distance Between Tie Bere | mm | 320*160 | ||||
| 最小模厚 Min.Mold Height | mm | 60/100 | ||||
| 开模行程 Openging Stroke | mm | 193 | ||||
| 最大开模距离 Max. Open daylight | mm | 253/293 | ||||
| 顶出压力 Ejetor Force | Tons | 2 | ||||
| 动力电热系统 Power\Heading unit | 最大液压压力Max. Hydaulic Pressure | kg/cm2 | 140 | |||
| 泵浦吐出量 Pump Outpet | 1/min | 28 | ||||
| 马达电力 Pump Motor power | kw/HP | 3/4 | ||||
| 电热容量 Berrel Heating Power | kw | 2 | ||||
| 总用电量 Total Weight | kw | 5.3 | ||||
| 其他 Other | 机器重量 Machine Weight | kg | 880 | |||
| 机器外型尺寸Machine Dimensions(L*W*H) | m | 1.4*0.9*2.4 | ||||
